SomoGear NGAL/LA23 Visible & IR Laser VCSEL Illuminator(including PCB)

The website price includes international shipping and customs clearance fees.

The website does not support online payment.

If you wish to purchase the goods, please send an email or contact us via Instagram.

Email: maxwen7@gmail.com

Instagram: wenyang_10

Reply within 24 hours

The SomoGear NGAL is a rugged, ultra-compact aiming laser system designed for tactical training, airsoft, and night vision use. It features co-aligned visible and IR lasers, a focusable VCSEL IR illuminator, and an included ND filter and diffuser for reduced-output training applications.

NGAL Illuminator Key Features

• Brand: SOMOGEAR
• Fits MIL-STD-1913 Picatinny rails
• CNC-machined 6063 aluminum housing
• Zeroable aiming laser

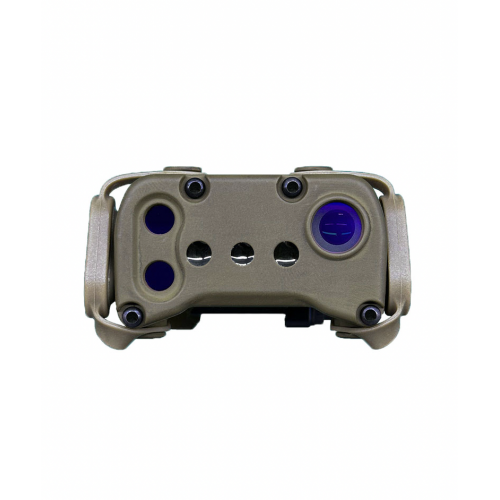

• Co-aligned visible and IR lasers, with less than 10 cm of offset at 30 meters
• Focusable VCSEL IR illuminator with diffuser cover
• 288° rotating focus ring, adjustable from spot to flood
• ND filter and diffuser included for reduced-output training use
• Reinforced, epoxy-sealed top activation button
• Rain- and splash-resistant design
• The Vis-Override function requires the optional Vis-Override Pressure Switch, sold separately.
• IR illuminator max flood angle: 8.9°
  At 30 meters, maximum flood beam diameter is approximately Ø4.6 meters.
  Want to check beam size at other distances? Try our Beam Calculator.
• Ships from Hong Kong

Important Notes

• When mounting on the rail, do not over-tighten the mounting screw, as excessive torque may affect zero retention.
• To securely fasten the aiming laser mount, we recommend using around 20 in-lbs (≈2.3 Nm) with blue Loctite.
• To securely fasten the switch mount, we recommend using around 4.5 in-lbs (≈0.5 Nm).
• With the ND filter and diffuser installed, output is reduced to approximately 14–15% of normal power.
• Use caution when operating in high-output mode.
• Do not aim the laser directly into eyes or directly at night vision devices.
• Use a new 3V CR123A battery and install it with correct polarity.

Technical Specifications

• Dimensions: 3.6 in (L) × 2.0 in (W) × 1.25 in (H)
• Weight: 4.8 oz (172 g), without battery
• Battery: 1 x 3V CR123A
• Battery life: Over 6 hours
• To maximize battery life, we highly recommend removing the battery when the device is not in use for an extended period.

With ND filter and diffuser installed:

• Visible Laser / IR Laser / Illuminator (Low): ≤0.7 mW
• Visible Laser / IR Laser / Illuminator (High): ≤3.0 mW

Without ND filter and diffuser:

• Visible Laser / IR Laser (Low): ≤4.9 mW
• Visible Laser / IR Laser (High): ≤20 mW
• VCSEL Illuminator (Low): ≤15 mW
• VCSEL Illuminator (High): ≤50 mW

Since October 2025, all NGAL units feature upgraded VCSEL emitters for a wider and smoother beam pattern.

***Due to differences in monitor settings and lighting conditions, actual color may vary slightly from the images shown.***

Package Includes

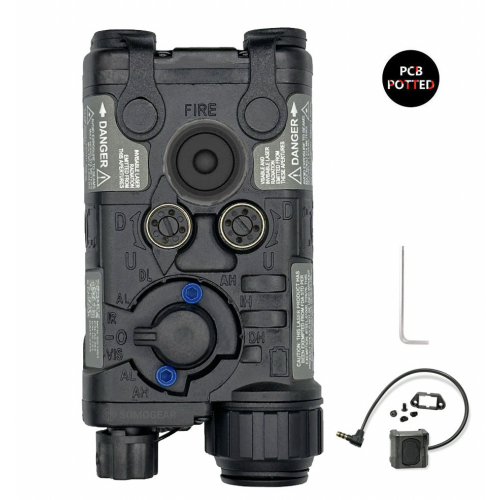

• 1 x NGAL/LA23 with ND filter and diffuser
• 1 x ModButton switch
• 1 x Sticker set

Remark:

• Battery not included due to air shipping restrictions.
